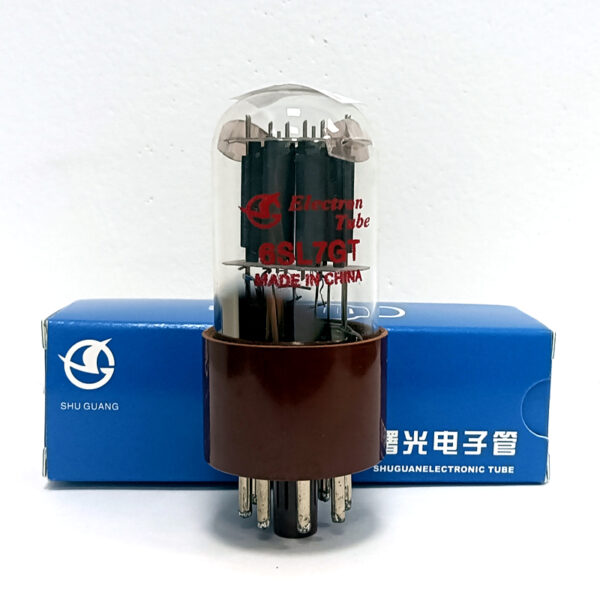

2026 NEW Shuguang Tube 6SL7GT(6H9C,6N9P)Amplifier HIFI Audio Vacuum Tubes

the price is for one piece

The 6SL7GT is a glass-covered, octal-pin bipolar transistor, used in radio equipment for multivibrators or as part of RC-coupled amplifier circuits. The 6SL7GT is similar to the 6N9P  and can be used interchangeably.

Heating by a hot wire

Uh …………………………………………….6.3       V

Ih ……………………………………………..0.3       A

Maximum rated values (per unit)

Anode voltage…………………………………..300       V

Positive gate voltage……………………………………….0         V

Anode power dissipation……………………………1         W

Voltage between the hot wire and the cathode……………………….±90       V

Static parameters

Ua…………………………………………….250       V

Ug………………………………………………-2       V

Ia………………………………………………..2.3      mA

Gm……………………………………………..1.6      mA/V

ri…………………………………………………44      kΩ

µ…………………………………………………70
